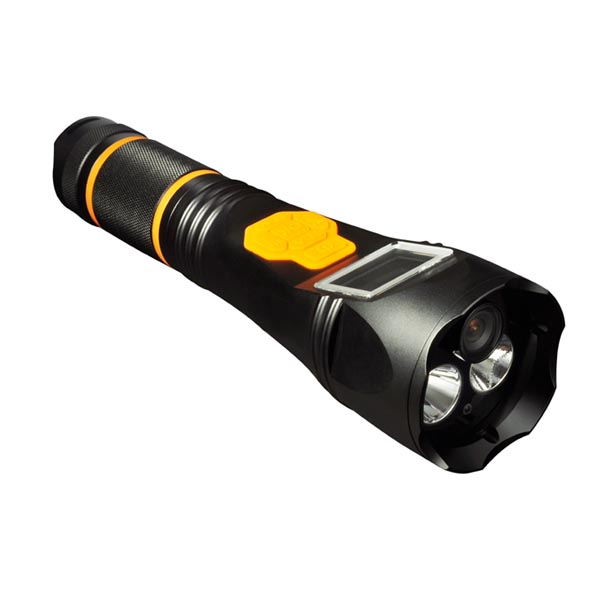

DFC-10 rechargeable police security led flashlight camera

Waterproof IP66 rechargeable police security led flashlight camera

Main Features of Waterproof IP66 rechargeable police security led flashlight camera

Aircraft grade aluminum body with hard anodized finish, water resistant and shock resistant
Li-ion battery, self-protection from over charge and over discharge
Integrated CMOS video camera
DVR flashlight with display screen
Spotlight and floodlight for lighting, or lighting conditions for high quality pictures and video
Independent video, taking photos and lighting On/Off switch
Big storage capacity for video and photos
Downloads directly to your computer via USB cable (included) or copy it from TF card directly

Specification of Waterproof IP66 rechargeable police security led flashlight camera

No.	item		parameter	unit
1	Rated voltage		3.7	V
2	Reted capacity		2.2	Ah
3	Light source (LED)	Rated power	2 / 1	W
		Lifetime	100.000	h
		Color temp	5500	K
4	LED Continuous working time		≥6.5	h
5	Charging time		≤7
6	camera working time	With strong light	≥2.5
		No turn on light	≥4
7	View Angel		87	degree
8	Camera pixel		5	million
9	Photo resolution		4000×3000(1200W)/3200×2400(800W)/ 2592×1944(500W)/2048×1536(300W)(Four choices)
10	video resolution		1920x1080, 1280x720, 840 x 480 (alternative)
11	Storage Medium		4/ 8/ 16/ 32	G
12	Audio/video size		35-100	MB/ minute
13	Video format		MP4
14	Battery circular life		1000	circle
15	Product Dimension		Φ65×230	mm
16	Weight(About)		490	g
17	Operating Temperature		-10~+40	degree
18	OperationHumidity		15~85%	RH
19	IP Grade		IP66



Application of Waterproof IP66 rechargeable police security led flashlight camera



This flashlight is widely used for fire, exploration, police, electrical power grid, oil,
petrochemical, chemical industry, railway, tourism, etc. It can be used as flashlight, and can
also take pictures or video image real-time voice on different occasions.



Detail features of Waterproof IP66 rechargeable police security led flashlight camera



Use Environment :

1). Temperature of Environment: -10℃~+40℃.
2). Relative humidity: 15~85%RH.

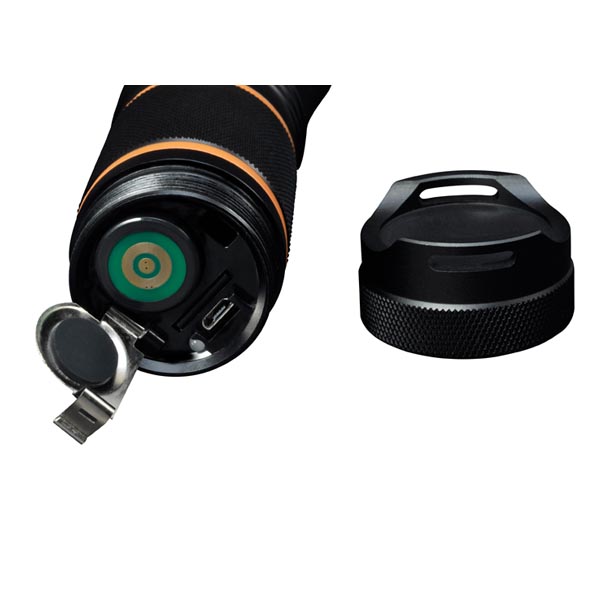

Battery:
1) Charge method:
1. twist the end cover.
2. The USB interface of the USB cable is connected with the electric connection, end is connected with an USB interface adapter, adapter is connected to an external power supply. Charge about 6 hours can be full, pull off the adapter, and then screw off the electric tail cover.

2) Battery installation:
1. screw start electric tail cover, through the battery fixing plate.
2. the configuration of the lithium battery into the handle (no positive or negative).
3. press, the battery is fixed, and can be twisted to use the end cover.



Packing list:
Multi-function camera flashlight +Adapter+Li-ion battery+USB line+hang rope

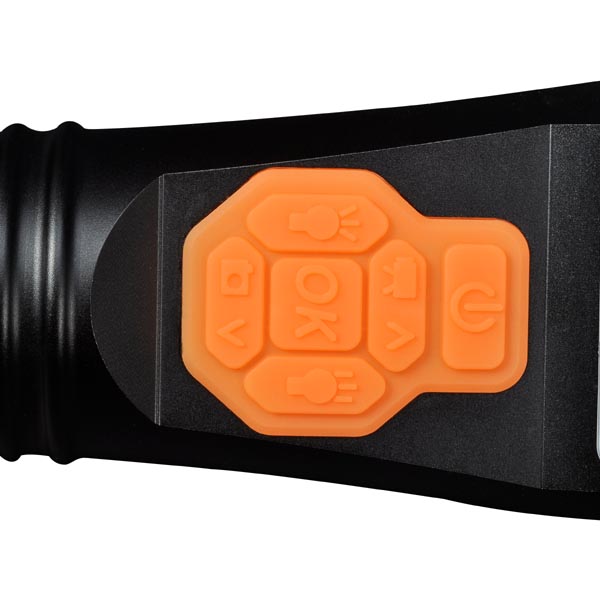

Operation instructions:

(1) Switch

Boot:Press 2 seconds after the start button to start, enter the standby mode, display the boot screen, At this point the light 1 light (blue).
Shutdown: after starting, press the power button for 2 seconds to make the system shut down.

(2) Usage Guide

Taking video:

If you want to take videos, pressing the power bottom for 2 seconds to switch on the power, then press the DV button.The indicator light 2 is flashing green when the camera is
working, please press it again if you want to finish taking video.Then you can press it for 2 seconds to watch the video you took.

Taking photo:
If you want to take photos, pressing the power bottom for 2 seconds to switch on the power, then press the photograph button, the indicator light 1 is green which means the photo is took and saved. Then you can press it for 2 seconds to see the photo you took.
Pixel settings:
Press the OK button for 2 seconds to enter the menu mode, then you can set the photo and video pixels. Press it again to exit the menu mode.
Flood light:
Floodlight control button, press this button on the left side of the pan - light, and then press it off.
spotlight:
Press on the control button, press this key to the right side of the spotlight, and then click the lamp off.
