KL6LM led cordless inductive charging safety miners lamp/mining light

  • Model Number : KL6LM
  • LED light source : Cree XP-E2
  • Power Source : Rechargeable Battery
  • Battery Type : li-ion battery
  • IP Rating : IP67
  • Certification : ATEX,CE
  • Lamp Body Material : PC
  • Warranty(Year) : 1
  • Lamp Power(W) : 1
  • battery capacity : 6.6Ah
  • battery type : li-ion battery
  • Charging time : 8H
  • lighting degree : 15000 lux

KL6LM led cordless inductive charging safety miners lamp/mining light

( patent product, patent No.:ZL2016 2 0503753.9)

Product Description

1. Light Source :

1W Cree XP-E2 LED as main light and 2 pieces 3014 SMD LED as auxiliary light 150LM, 15000lux

2. Four light mode: Mian LED high bright, Mian LED auxiliary light, Auxiliary LED for half bright light, Strong light blink.

3. Lighting time: high bright 16h, half bright 26h, auxiliary light 100h, strong light blink in last 1 hour.

4. Reliability:semi-clear frosted PC housing ,impact-resistant, corrosion-resistant and waterproof.

5. Security: Integrated explosion proof design, with Impact construction which can prevent overcharging and over discharging.

6. Energy saving:High efficient semi-conductor tec adapted, can save 70% energy than traditional light bulb under same illuminance.

7. Economical:Long life spam light emitting diode, no need maintenance, no extra cost.

8. Environment friendly:Lithium battery with high performance,memory-less, low self discharge rate.

7. Convenience:small size, light weight,lighten users load and Wears comfortable.

9. Uniqueness:

1) Wireless charging technique avoid the bad contact duo to charging port oxidation. Waterproof can also be improved.

2) OLED screen indicate time,work mode, serial number and actual battery balance

Specification:

Item

unit

data

LED Source

LED Power

W

1

Luminous Flux

lux

15000

Life Span

h

100,000

Battery

Rated Capacity

mAh

6600

Rated Voltage

V

3.7

Charging Time

h

≤10

Life Span

Life Circle

1000 circle

Charger

Input voltage

V

AC110240

Output Voltage

V

DC 5

Output Current

A

1.5

Lighting hours

h

13

Lighting distance

m

30

Using Temperature

-20~ 40

Max Surface Temperature

50

Dimension

mm

90×73×64

Weight(battery included)

g

209

Ex Mark

I M1 Ex ia op is I Ma En 60079-35-1

IP Class

IP67

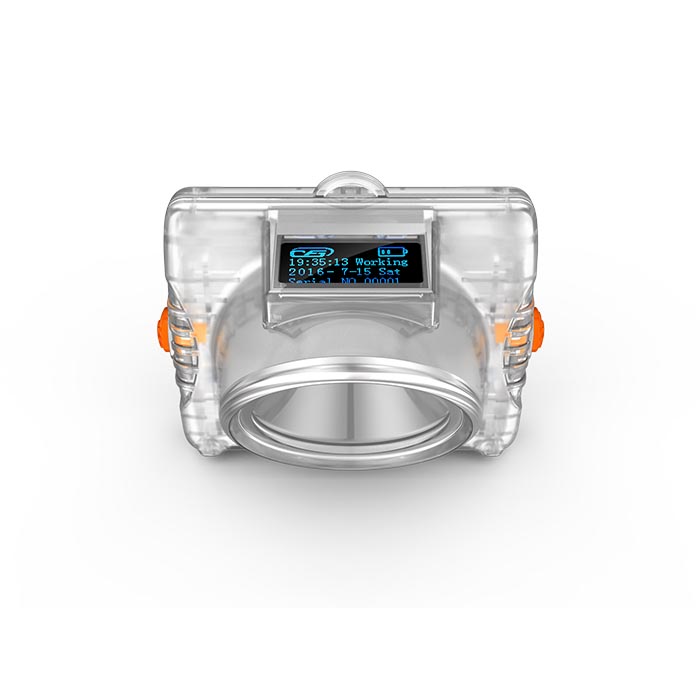

Product show of KL6LM(No wire between charger and lamp):

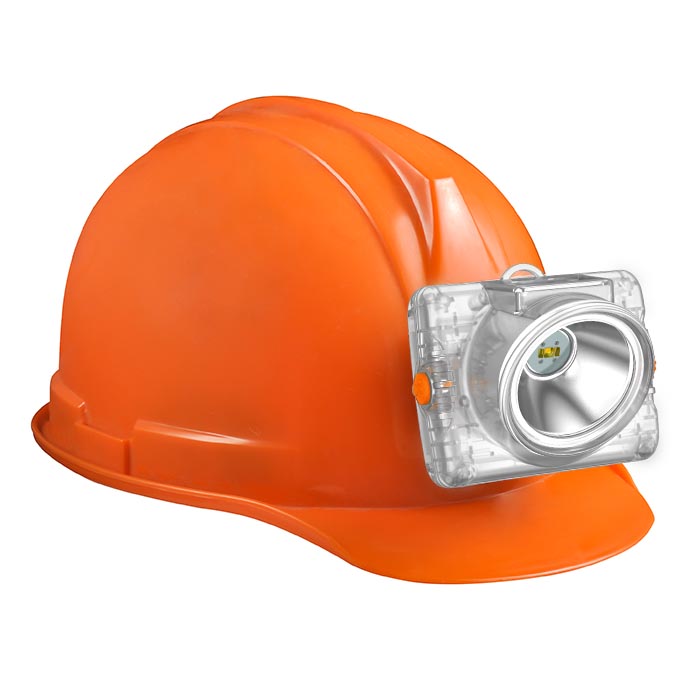

KL6LM miners lamp/mining light/mining cap lamp/cordless mining light/safety helmet lamp

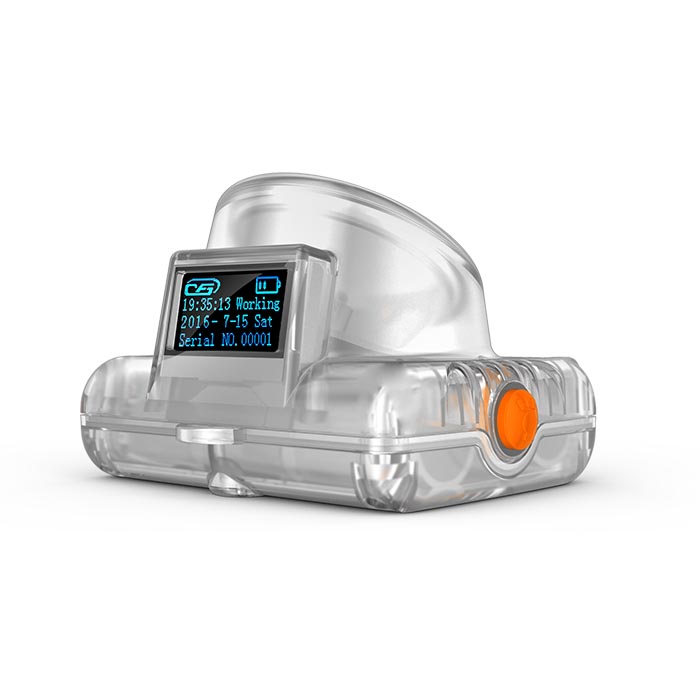

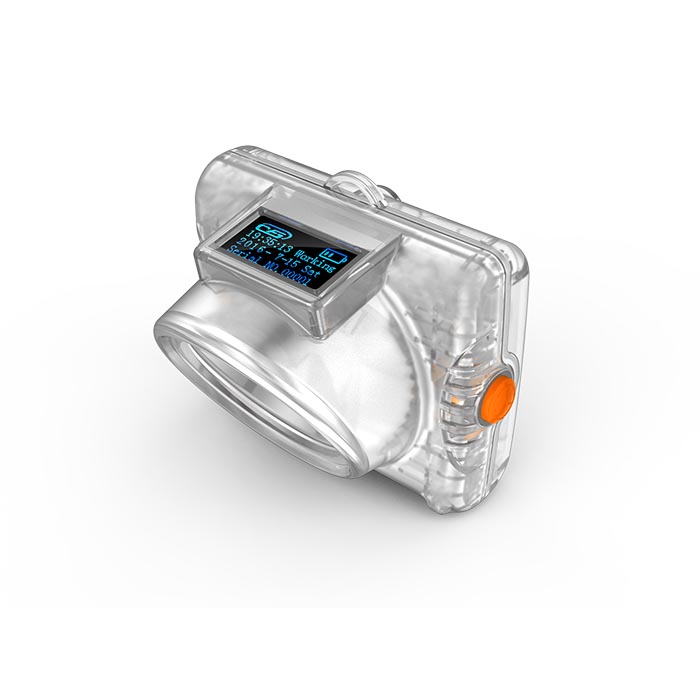

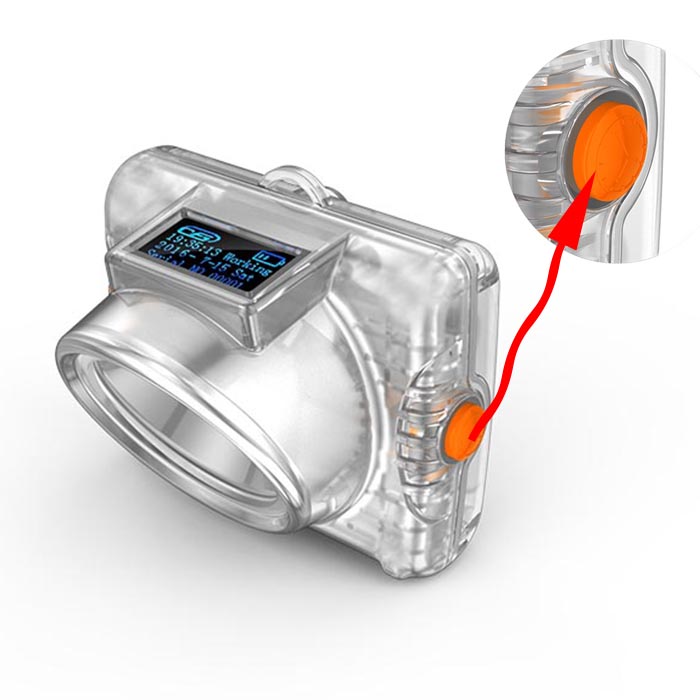

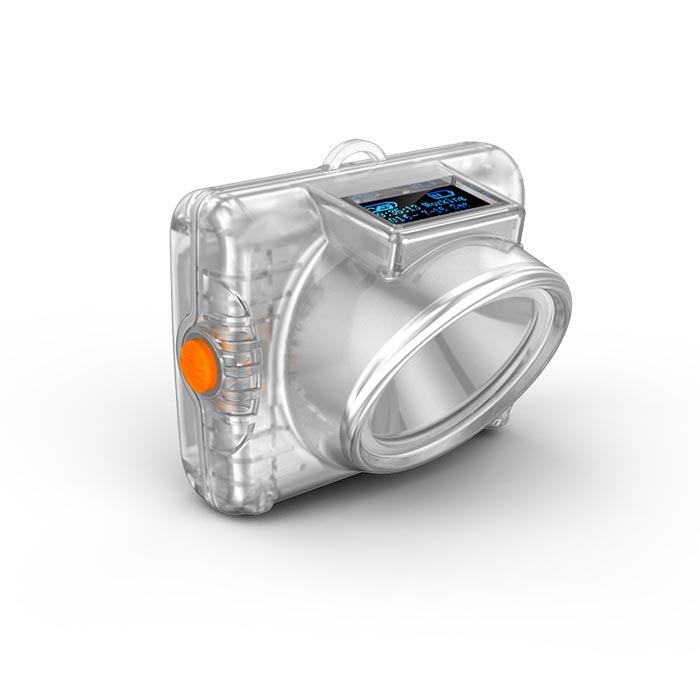

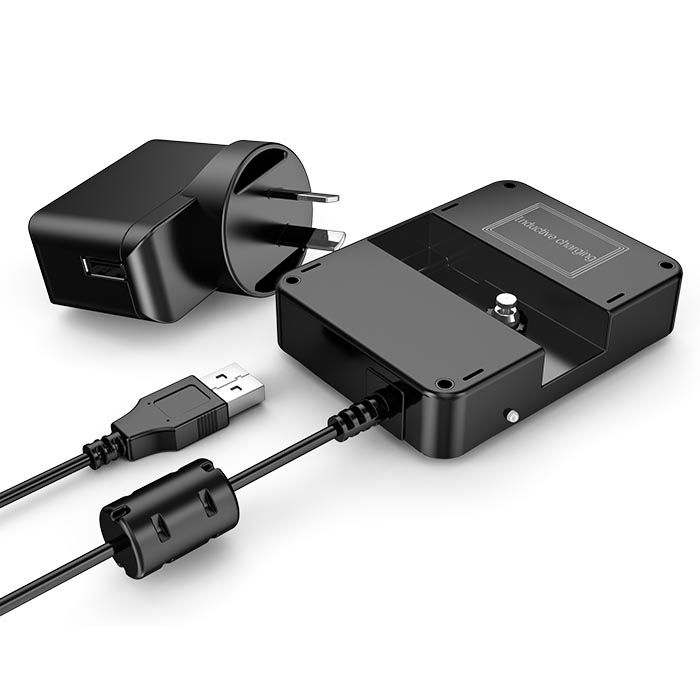

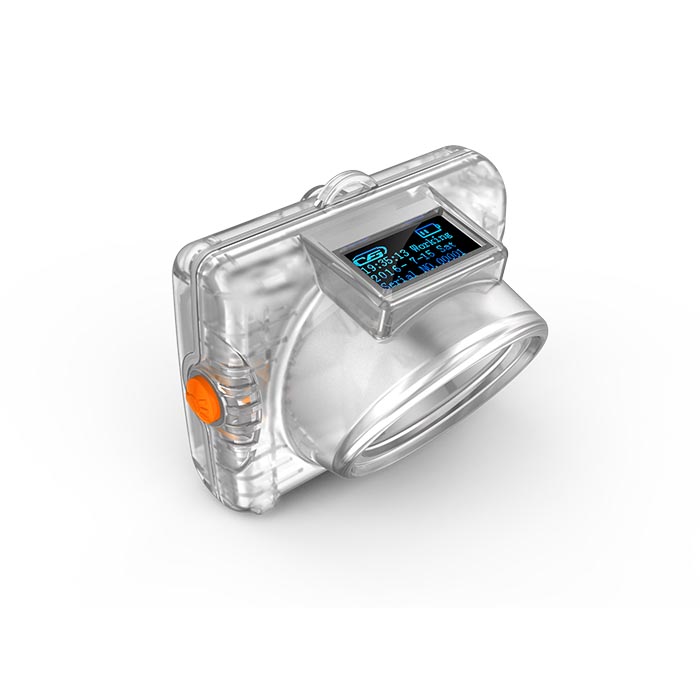

cordless mining cap lampKL6LM cap lampKL6LM mining lightled cap lampled mining headlampcharger for mining cap lamp



Usage

1. Press display switch to turn on/ off OLED display.

2. Press lamp switch first time for main light high brightness; Press lamp switch second time for main light half brightness, Press lamp switch third time for backup light.

3.When in any time, press and hold the lamp switch for three seconds, the main light will start flashlight

4.Time and serial number setting:

Press both display switch and lamp switch at the same time for three seconds, the lamp turn to time and serial number setting mode. "Setting" will be shown on the right of the second line of OLED display, and the digit number of "hour" start flashing at the same time,Then press lamp switch to set the number of “hour”. After that press display switch, the digit of “minute” start flashing, press lamp switch to set the number for “minute”. Repeat the above steps to set the numbers of weeks, date and lamp’s serial number. It will be out of the setting mode if no operations was done within 5 seconds.

Packaging & Shipping

packing details: 20pcs/ctn, gross weight : 9kg/ctn , Carton size : 41*33*24CM

Our Services

We can provide customer good quality,quick delivery,good service.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.

Company Information

GOLDEN FUTURE ENTERPRISE HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years, especially for miner lamp, explosion proof lighting fixture, LED street light and other LED commercial lightings, and etc.
We have more than 10 advanced engineers with many years design experience for the electronic design, structure design and optics design.
With many years selling, We have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.

FAQ

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: How to make this payment?
A: TT, Paypal, Western Union.
Q: Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: Do you accept OEM/ODM?
A: Yes, it’s available.
