SPC120H2-120W waterproof led tunnel lights

  • Model Number : SPC120H2-120W
  • Light Source : LED
  • Item Type : Tunnel Lights
  • LED Light Source : Bridgelux
  • Input Voltage(V) : AC85-265V
  • Lamp Power(W) : 120
  • Lamp Luminous Flux(lm) : 120000
  • Lamp Luminous Efficiency(lm/w) : 100
  • CRI (Ra>) : 80
  • Working Lifetime(Hour) : 50000
  • IP Rating : IP65
  • Certification : CE, ETL, RoHS, SAA, UL
  • Warranty(Year) : 3
  • LED driver : Meanwell
  • beam angle : 50 and 120 degree
  • CCT : CW,DW,NW,WW

high power energy-saving120w waterproof led tunnel lights



Product Description

Advantages of high power energy-saving120w waterproof led tunnel lights

1. Adopt high light efficiency light source, >100lm/W
2. Stable and low decay.
3. The Tj for LED is less than 85°C;
4. Lifespan up to 50000hrs.
5. Energy saving, excellent heat disspation.
6. ECO-friendly, mercury free, lead free.
7. Low maintenance and replacement costs;
8. Fixture surface with anti-static spray, improved
resistance to acid, anticorrosive.
9. PF > 0.95.







Specifications of high power energy-saving120w waterproof led tunnel lights





Model

LED Type

Color

Voltage

Beam Angle

Wattage

Lumen (lm)

CRI (Ra)

PF

IP factor

SPC120H2-120W

2 pcs COB

CW

AC85-265V

120°

120W±10%

11613±15%

70-80

≥0.95

IP65

DW

AC85-265V

120°

120W±10%

11000±15%

70-80

≥0.95

IP65

NW

AC85-265V

120°

120W±10%

10600±15%

70-80

≥0.95

IP65

WW

AC85-265V

120°

120W±10%

10174±15%

70-80

≥0.95

IP65

Remarks:

1. Available color temperature CCT: CW:5500-6500K, DW:4700-5300K, NW:4000-4500K, WW:3000-3500K.

2. Lumen is based on the condition of Ta<25 with a tolerance of ±15 %.

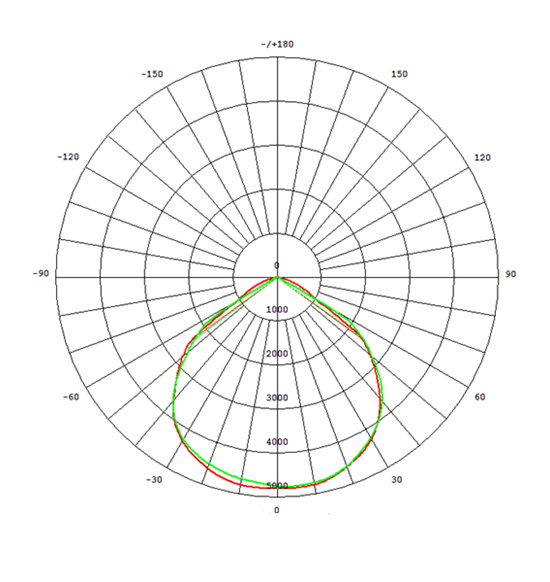

Lighting distribution Curve:

120w led tunnel light









Application of high power energy-saving120w waterproof led tunnel lights



1. Indoor & outdoor project lighting;
2. Suitable for workshop, factory, warehouse, toll station, gas station, supermarkets, exhibition center, stadium and other places.



Packaging & Shipping



1. Net weight:11.95 kgs
2. Outer carton size:670x360x275mm
3. Q'ty per ctn:1 pcs
4. G.W per ctn:13.23 kgs

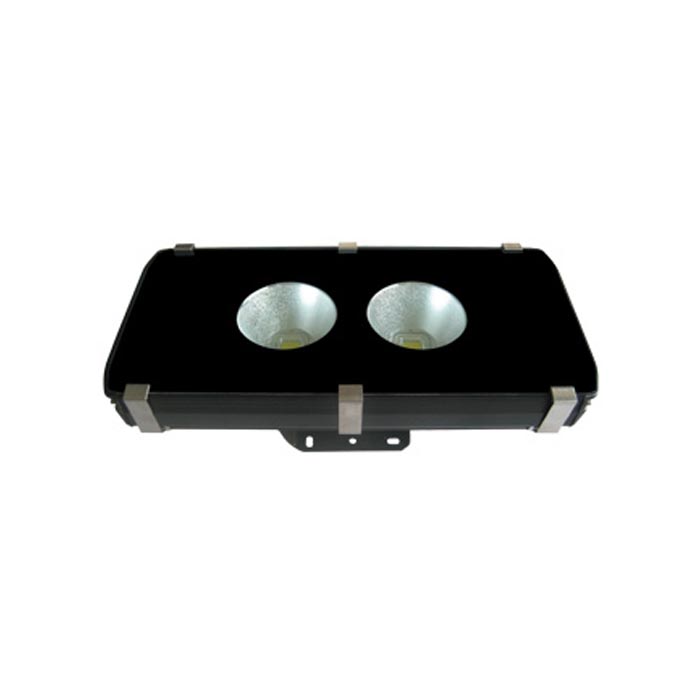

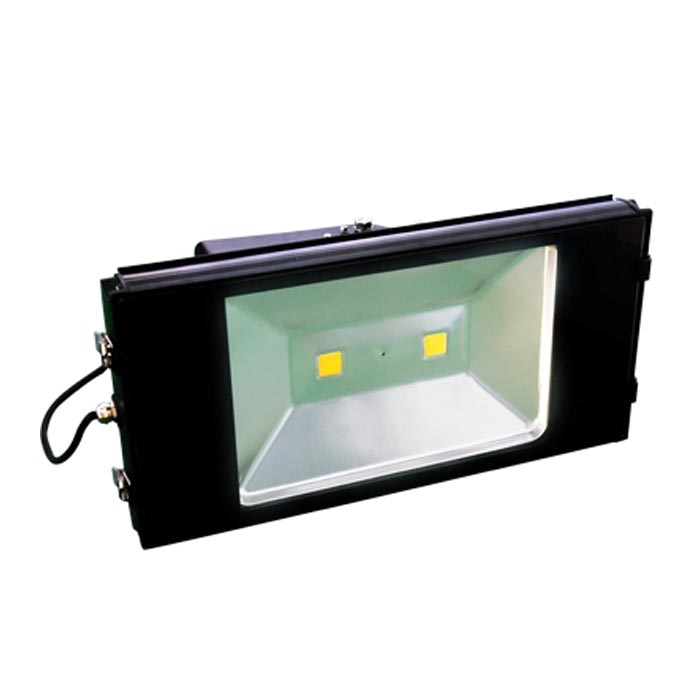

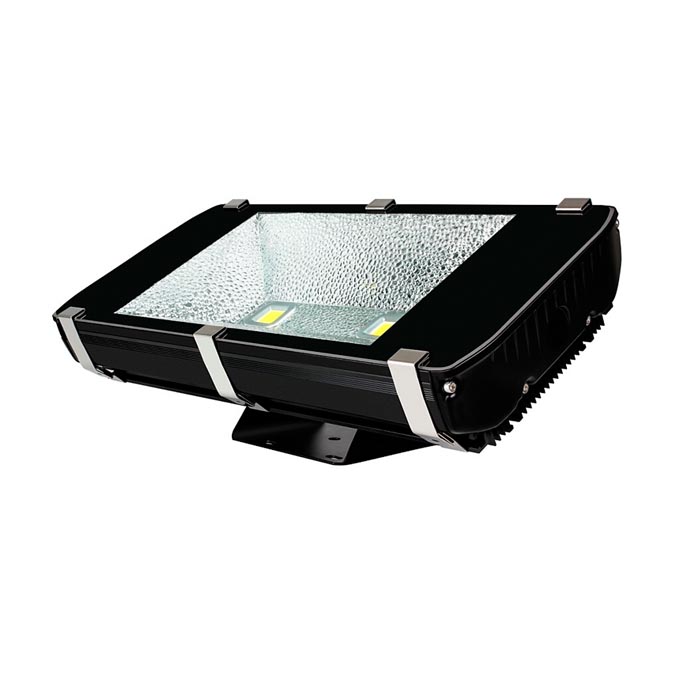

product show:

led tunnel light120w led tunnel light

Our Services



Replying your inquiry within 24 hours

Consultation from professional and experienced staff

Providing 1-3 years warranty

Solid pakage & fast delivery & newly tracking mews

OEM is welcome. Providing customized service.



Company Information



Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

Please do not hesitaye to contact us if you need led application products or need to develop new products.
