SPC80H2-80W UL approval waterproof IP65 tunnel led light

UL approval 80w waterproof IP65 tunnel led light

Brief information:

1.product model: SPC80H2-80W

2.power:80watt

3.output lumens:8000

4.inpurt voltage:AC85-AC265V

5.lifetime:>50000h

6.light source: Bridgelux COB LED

7.warranty:3year

8.Certification: CE/ RoHS/SAA/UL/ETL

Technical parameter of UL approval 80w waterproof IP65 tunnel led light

LED type	COB 80W
lifetime	>50000h
waterproof	ip65
power	80w
lumens output	8000lm
beam angle	50,120degree
unit weight	7.82kg
CCT	CW, DW, NW, WW for option
Input voltage	AC85-265V
CRI	70-80
Certification	CE/ RoHS/SAA/UL/ETL



Application of UL approval 80w waterproof IP65 tunnel led light



1. Indoor project lighting.
2. Suitable for workshop, factory, storage warehouse,toll station, toll booth,gas station, supermarkets, stadium, exhibition center, and other places.

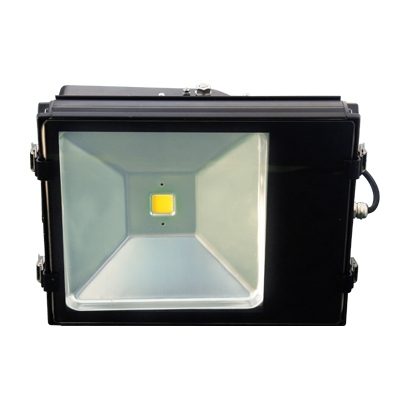

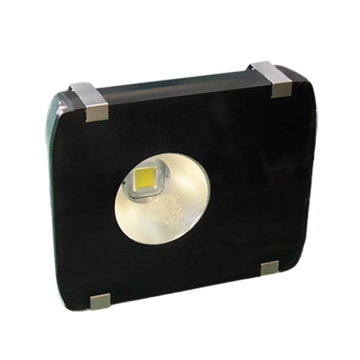

Product show :



Application notice:



1. Working temperature:-20 to 45℃

2. Storage temperature:-25 to 55℃
3. Optimal working temperature:0 to 30℃

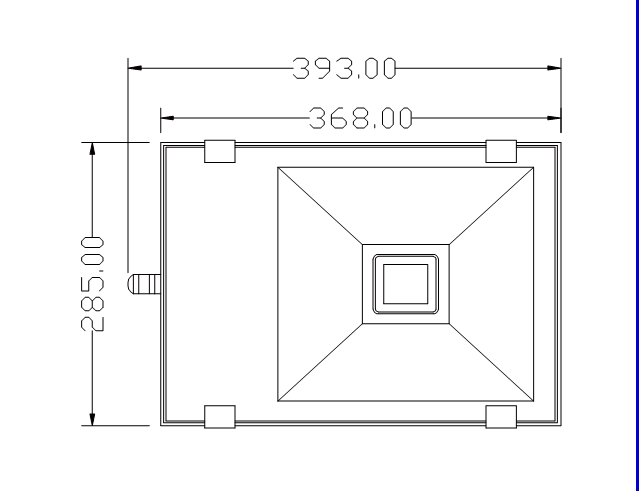

Dimension(MM)



Packing details

1. Net weight:7.82 kgs
2. Outer carton size:460x340x425mm
3. Q'ty per ctn:2 pcs
4. G.W per ctn:16.79 kg



Advantages:

1. Adopt high light efficiency light source, >100lm/W;
2. Stable and low decay;
3. The Tj for LED is less than 85°C;
4. Lifespan up to 50000hrs;
5. Energy saving, excellent heat disspation;
6. ECO-friendly, mercury free, lead free;
7. Low maintenance and replacement costs;
8. Fixture surface with anti-static spray, improved resistance to acid, anticorrosive;
9. PF > 0.95;
