Led explosion proof light

Home > Products> Miner lamp

waterproof IP65 explosion proof safety led tunnel lights

  • Model Number : DMT-30
  • LED Light Source : CREE
  • Input Voltage(V) : AC85-265V
  • Lamp Power(W) : 30
  • Lamp Luminous Flux(lm) : 3000
  • CRI (Ra>) : 78
  • Working Temperature(℃) : -30 - 50
  • Working Lifetime(Hour) : 50000
  • IP Rating : IP67
  • Ex mark : EXD I, EXD IIB T4
  • Housing : stainless steel
  • Certificatiion : ATEX,CSA,CE,ROHS

waterproof IP65 explosion proof safety led tunnel lights





Product Description

Product details :

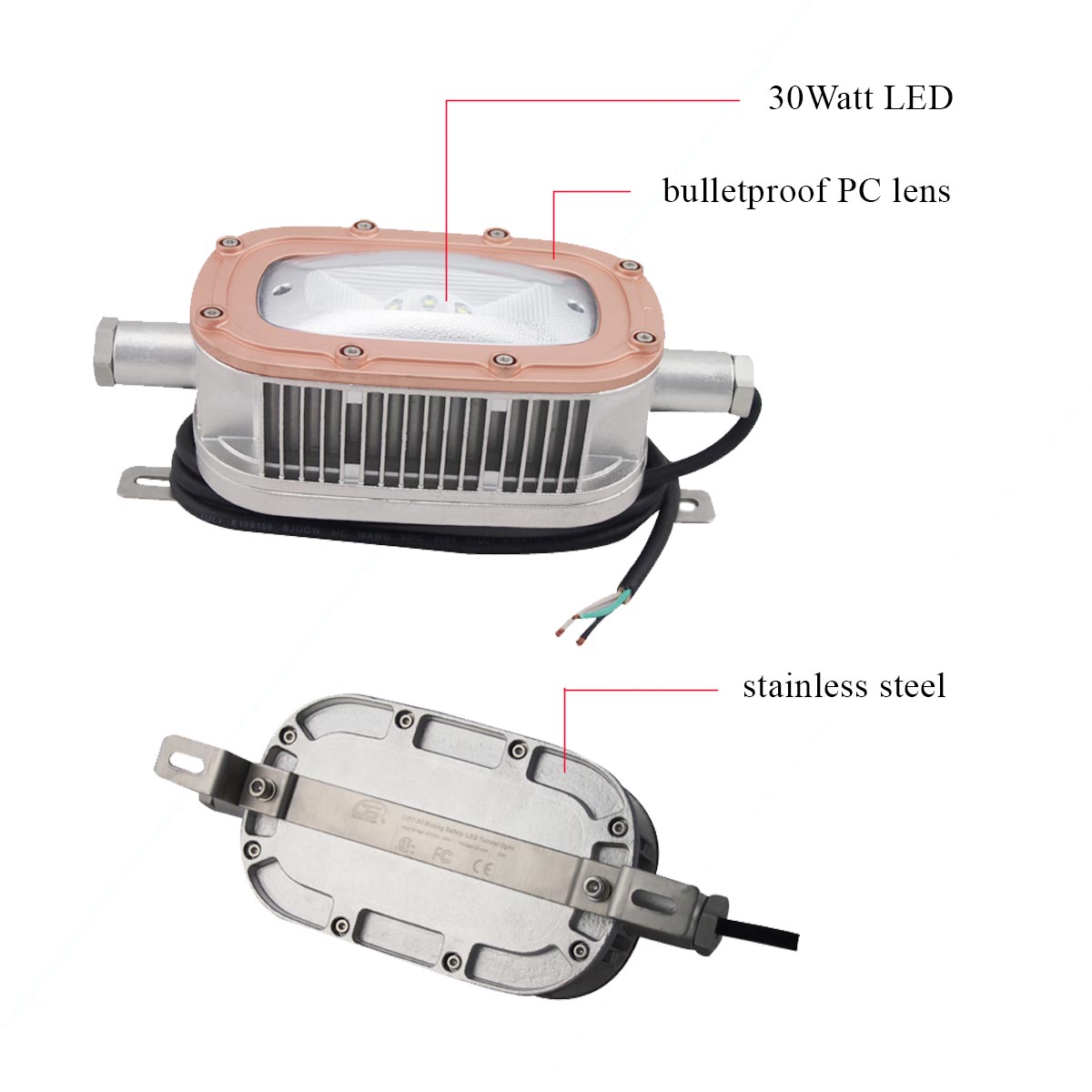

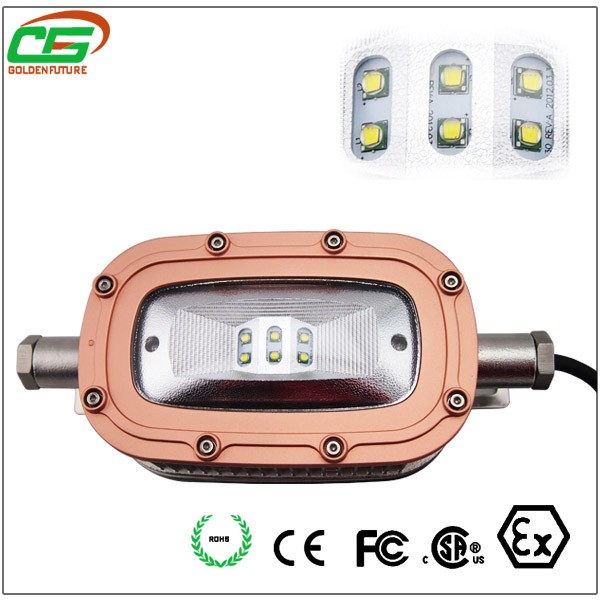

1. 6pcs 5 watt Cree high power LED to get more than 3000 lumens output, which is specially designed for tunnel illumination of underground mines, industry plant and offshore oil plant etc..



2. Stainless steel housing and bulletproof PC lens, which make the IP66 stainless waterproof led light absolutely corrosion proof and unbreakable.



3. Long life span, and no maintenance cost, absolutely explosion proof, dust proof and water proof.



4. Total power consumption of the mining safety LED tunnel light

is only 30watt, reducing energy consumption by 7 times. the energy you saved for one year using is enough to buy the lamp.



5. CSA & ATEX Approved DMT-30 New design ul approved led flood light



Specifications:



Items

Unit

Total power consumption:

30watt

Output lumens:

3000 lumens

Rated Voltage

AC 85~265V

DC 24- 36

Dimension:

24 * 12 * 8.9 cm

unit weight(lamp)

5.5 kg

Power factor (λ):

>0.9

Certificate

CE,FCC,CE,EX,CSA

CRI:

78

CCT:

6500K

Corrosion proof grade:

WF2

IP Classification:

IP67

Explosion protection classification:

EXD I, EXD IIB T5

Equipment category:

MI, MII

Area classifications (gases):

Zone 1 and 2

Gas Group:

IIA, IIB,

Area classification (dusts):

Zone 21 and 22

Temperature classification:

T5

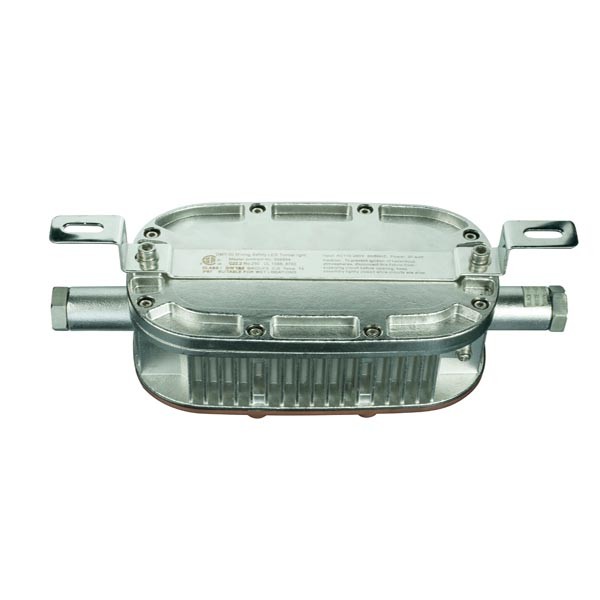

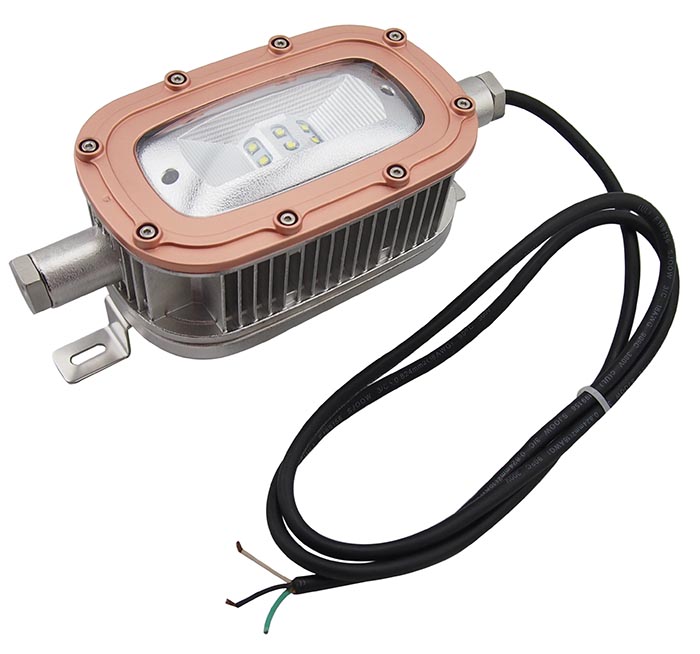

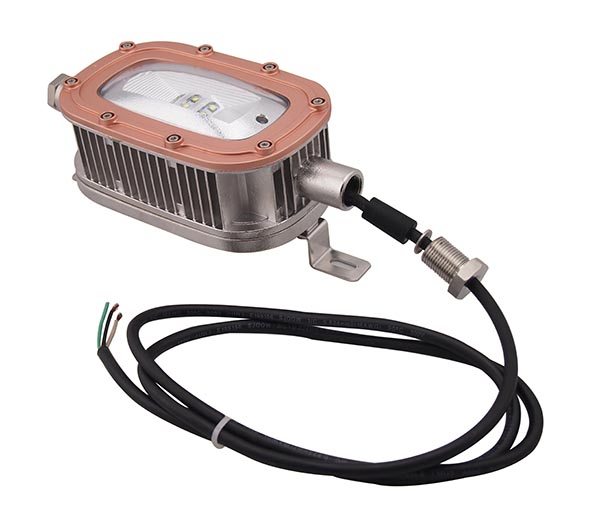

Product show safety led-tunnel-lights :




4



Usage :



1. outdoor explosion proof area,tunnel light.

2. Coal mine, offshore oil plant,metal mine,gold mine, marine and so on.





Packaging & Shipping

Packing details: 1pc in one carton, gross weight: 6.5kg

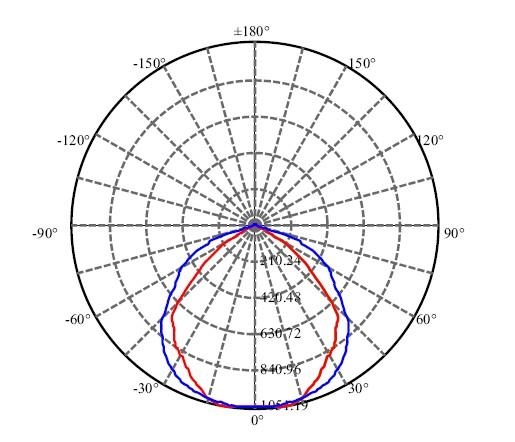

Light distribution Curve:

DMT-30曲线

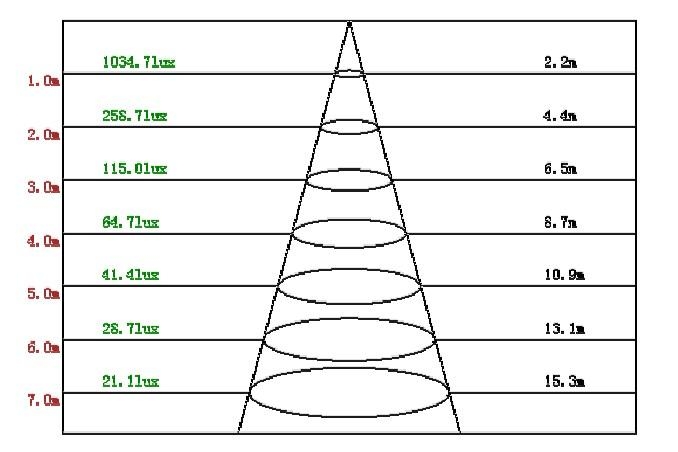

Lux Distance Curve:



DMT-30曲线1

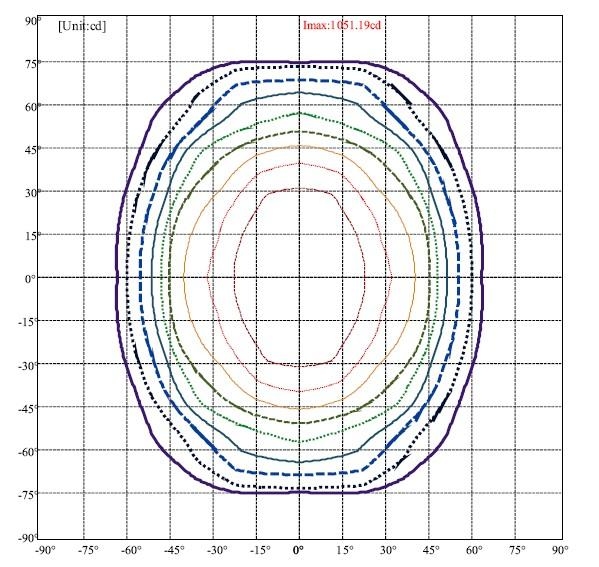

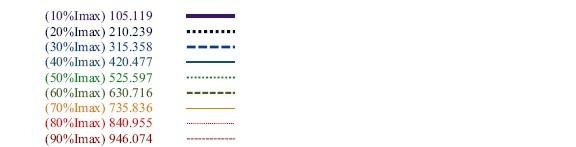

ISO Intensity:

DMT-30曲线2DMT-30曲线3

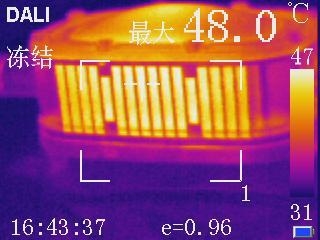

Housing temperature under working: less than 50 degree

tested by infrared temperature meter

DMT-30曲线4
