Led explosion proof light

Home > Products> Miner lamp

40w outdoor led gas station explosion proof light

  • Model Number : DL602-08
  • LED Light Source : CREE
  • Input Voltage(V) : AC85-265V
  • Lamp Power(W) : 40
  • Lamp Luminous Flux(lm) : 4000
  • CRI (Ra>) : 75
  • Working Lifetime(Hour) : 50000
  • IP Rating : IP65
  • Ex mark : ExnA II T3
  • Housing : aluminium alloy
  • Certificatiion : CE,ROHS

40w outdoor led gas station explosion proof light

Product details of 40w outdoor explosion proof light

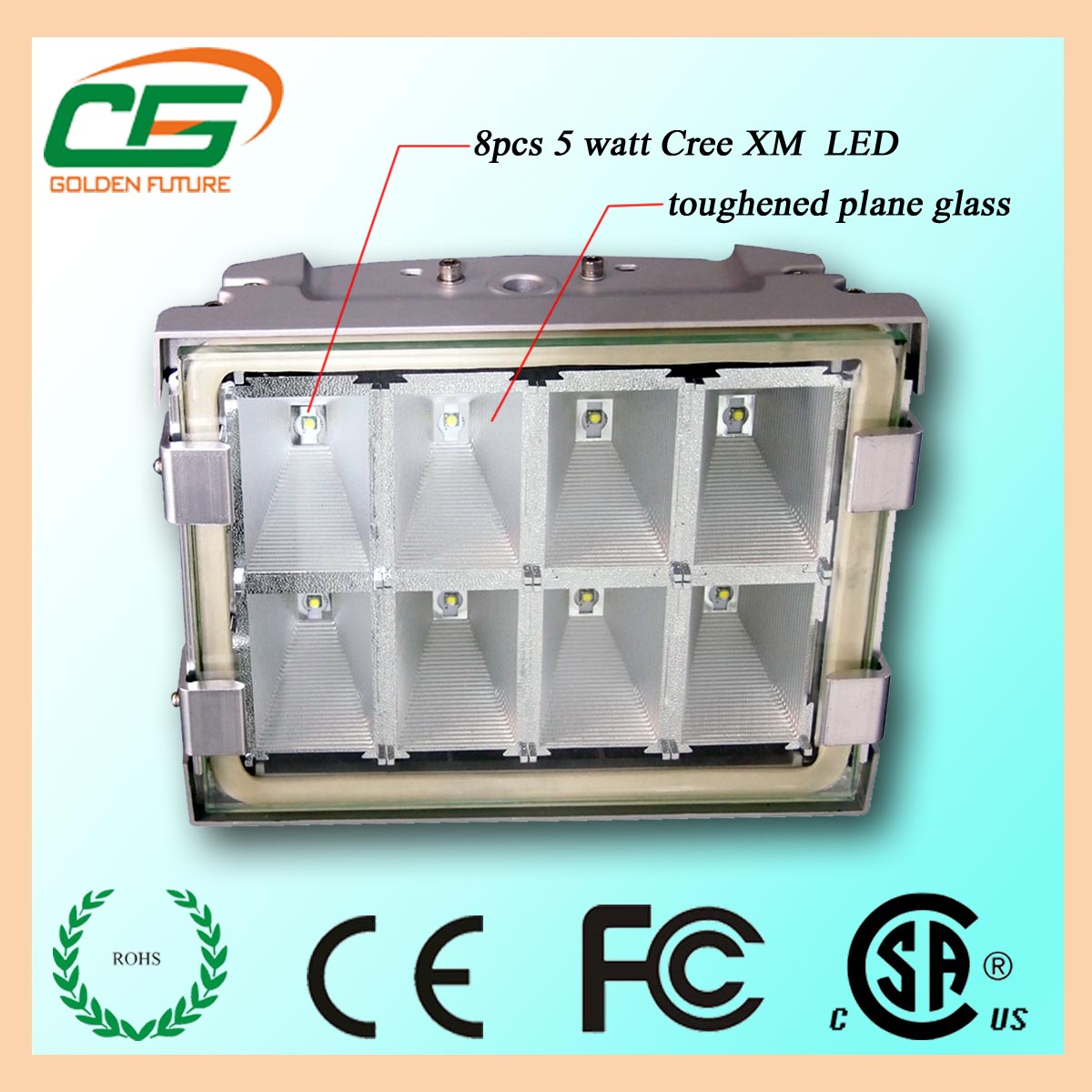

1. 8pcs 5 watt Cree XM white LED as the light source, lifetime is more than 100,000 hours

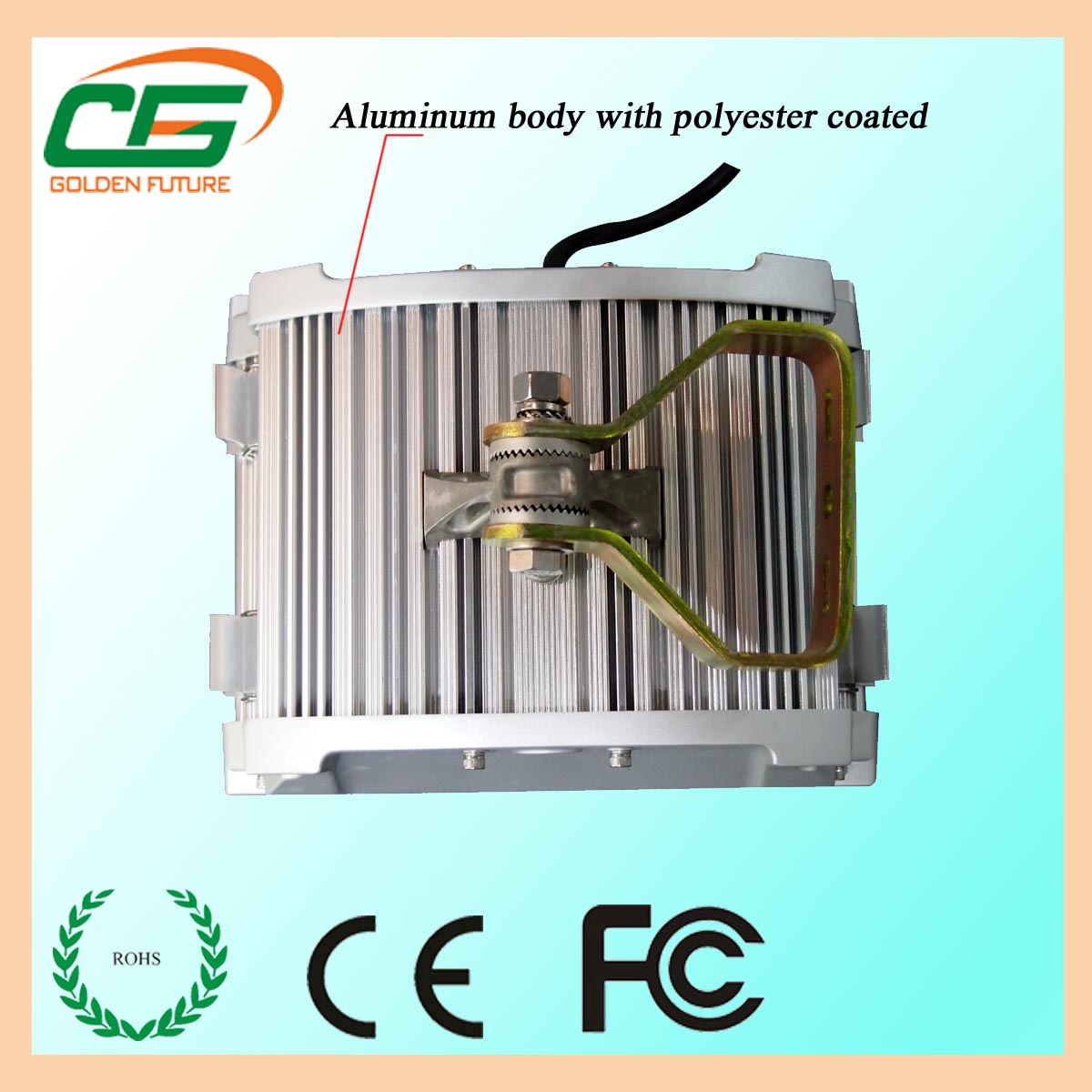

2. Aluminum body with polyester coated, toughened plane glass.

3. DL602-08 40w outdoor led gas station explosion proof light is heat-resistance, shock resistance, corrosion-resistance, and good light transparency.
4. No UV or IR for the LED light, no heat and no harmful radiation.
5. DL602-08 explosion proof light is a Multifunctional Led floodlight, which can be used as the street light,

tunnel light, or flood lighting in hazardous and explosive environment.

6. Output lumens: 4000 lumens,
7.Water-proof :classification:IP65
8. EX Mark:ExnA II T3



Technical parameters of led gas station explosion proof light

Items

Unit

Value

Light

LED Power

W

40

Luminous Flux

lumen

4000

Life span

Hour

100, 000

Rated Voltage

V

AC 110~240

DC 36

DC 24

Dimension

cm

20.4*27.8*11.5

Weight

kg

4.8

Inlet’s thread

G3/4

Corrosion protection Classification

WF2

IP Classification

Ip65

EX Mark

ExnA II T3



Applications of led gas station explosion proof light

1)Flammable and explosive Zone II and gas district.

2)Restrict district and heavy industry machining equipment district.

3)Drilling rig area and other atrocious seacoast and offing area.

4)Refinery, chemical plant, pharmacy plant, oil store and gas factory
